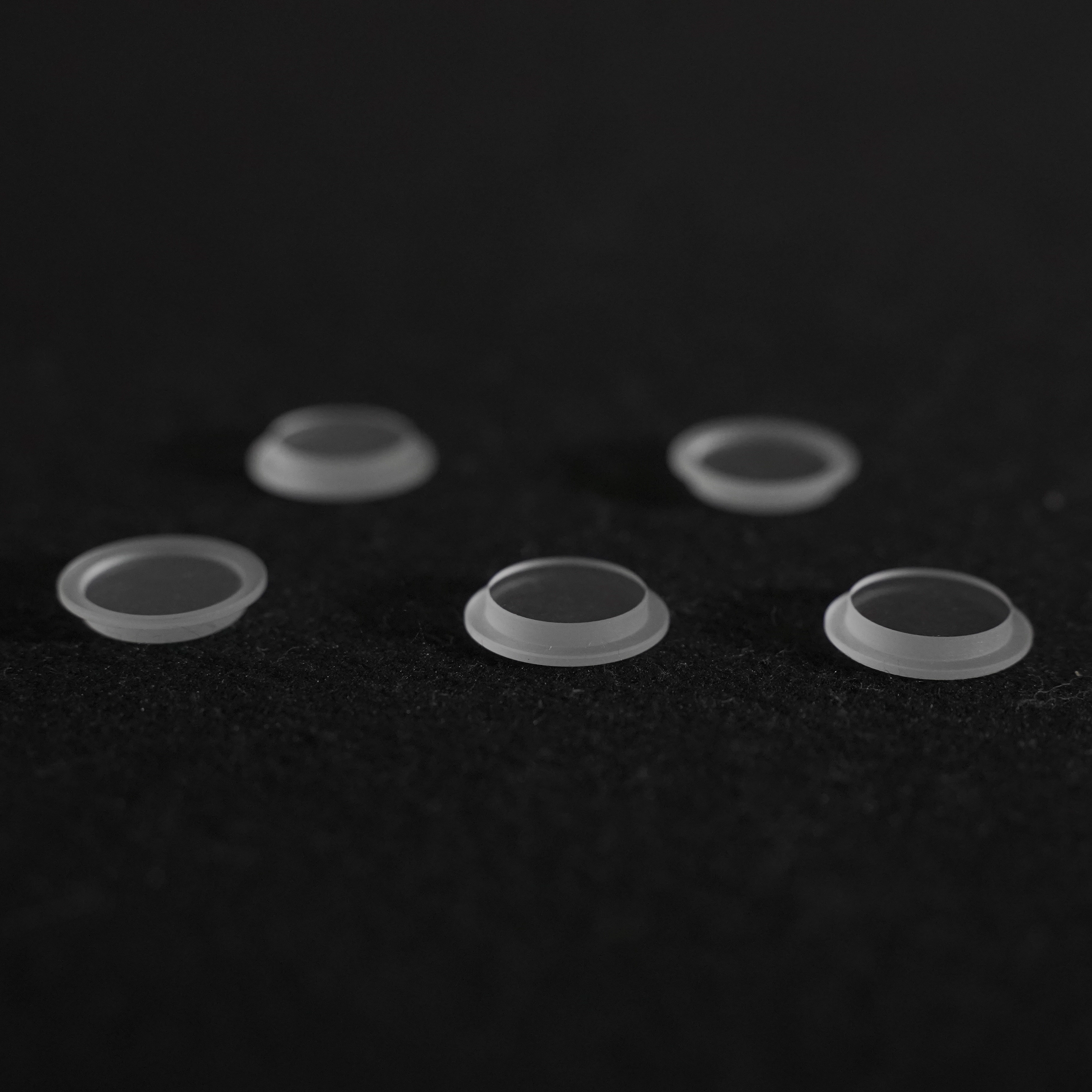

Optical Filters For Industrial Sensors: Complete Guide

In industrial automation and optoelectronics, the performance of a sensor is fundamentally limited by the quality of the light it receives. A high-end sensor paired with subpar optical components will still deliver compromised data. If a detector captures excessive optical noise, the entire system inevitably fails.

Precision wavelength selection is critical for maximizing the Signal-to-Noise Ratio (SNR). You might need to isolate specific gas absorption peaks in NDIR sensing. Alternatively, you might want to eliminate blinding glare in high-speed machine vision applications. In both scenarios, physical light management prevents sensor overload before digital processing even begins.

This guide provides a technical evaluation framework for selecting industrial optical filters. We balance essential optical performance metrics against manufacturing realities and environmental durability. You will learn how to match specific filter modalities to your sensing equipment, ensuring clean data input and reliable automation output.

Key Takeaways

• Application matching: Narrow bandpass filters are essential for SWIR and gas detection, while Neutral Density (ND) and polarizing filters solve exposure and reflection issues in machine vision.
• Core metrics dictate cost: Specify Full Width-Half Maximum (FWHM) and Optical Density (OD) based on strict application needs; over-specifying OD (e.g., OD 6+ when OD 3 is sufficient) unnecessarily inflates costs.
• Environmental vulnerabilities: Dichroic/interference filters are highly sensitive to the Angle of Incidence (AOI), causing blue-shift, whereas absorptive filters are angle-insensitive but retain heat.
• Integration value: Proper Anti-Reflective (AR) coatings can recover up to 8% of transmission losses across standard cover interfaces, pushing total transmission past 99%.

The Signal-to-Noise Challenge in Sensor Optics

Industrial environments are optically chaotic. Variable ambient lighting, highly reflective metal surfaces, and intersecting laser frequencies routinely overwhelm raw sensor arrays. When stray light enters a detector chamber, it degrades the pure signal required for accurate measurements. Advanced sensor optics must manage these chaotic conditions effectively.

Inadequate filtering leads directly to costly operational failures. In automated optical inspection (AOI) systems, glare causes false positives, triggering unnecessary line stoppages. Multi-spectral imaging systems suffer from skewed data when out-of-band light bleeds into target wavelengths. Gas detectors experience degraded sensitivity, misreading atmospheric concentrations because broad-spectrum light dilutes the narrow absorption peaks.

An optimized optical filter acts as the crucial first line of signal processing. It blocks out-of-band interference physically. You eliminate unwanted photon energy before it reaches the sensor chip. This physical barrier reduces the burden on downstream software algorithms, lowers computational lag, and directly boosts the overall accuracy of the detection system.

Wavelength Selection: Matching Filter Types to Sensor Modalities

Selecting the right filter type requires mapping your specific target wavelength to the appropriate filtering mechanism. Different sensor arrays require completely distinct approaches to light management.

Bandpass Filters for Specific Targeting (SWIR & NDIR)

Bandpass filters are essential for targeted gas detection and chemical sorting. They transmit a highly specific band of light while blocking everything else. For Non-Dispersive Infrared (NDIR) sensors, engineers rely on Lambert-Beer’s law to measure light attenuation. To do this accurately, they target precise absorption peaks. For instance, sensors target CO2 at 4.26µm or CH4 at 3.3µm. Bandpass filters isolate these exact wavelengths, blocking out unwanted visible or short-wave infrared (SWIR) light.

Neutral Density (ND) Filters for Light Control

In highly illuminated environments, machine vision cameras easily overexpose. ND filters solve this by reducing the overall light intensity evenly across the spectrum. They allow cameras to maintain wide apertures. A wide aperture ensures optimal depth of field. You can manage excessive brightness without altering the true color profile or spectral balance of the captured image.

Polarizing & UV Cut-off Filters for Glare Reduction

Polarizing filters block scattered light waves. They are crucial for inspecting transparent or reflective materials like glass, water, or plastic packaging. Ultraviolet (UV) cut-off filters block invisible short wavelengths that can cause chromatic aberration in RGB sensors.

Common Mistakes to Watch Out For: Polarizers reduce overall light transmission significantly—often by a full camera stop. You must adjust sensor sensitivity or exposure time to compensate. Furthermore, polarizers are ineffective on unpolarized reflections bouncing off bare, unpainted metal.

Dichroic Filters for Multi-Spectral Splitting

Dichroic filters use precise coatings to reflect specific infrared frequencies while transmitting visible light. They operate as splitters. Security cameras commonly deploy them for day/night switching. During the day, they reflect IR light to prevent color wash-out. At night, mechanisms remove them to allow IR illumination to reach the sensor.

Critical Evaluation Metrics for Optical Filters

To specify reliable optical filters, engineering teams must evaluate a strict set of quantifiable metrics. Relying on generic specifications often leads to system failure under complex lighting conditions.

Central Wavelength (CWL) and FWHM

The Central Wavelength (CWL) defines the exact center of your target transmission band. The Full Width-Half Maximum (FWHM) measures the width of this band at 50% of the peak transmission. You must differentiate between narrow and wide band requirements. Raman spectroscopy requires ultra-narrow bands, typically under 10nm, to isolate weak scattered light. Conversely, general industrial machine vision thrives on wide bands exceeding 50nm to capture sufficient illumination.

Optical Density (OD) / Blocking Depth

Optical Density measures blocking depth on a logarithmic scale. An OD of 1 blocks 90% of light. An OD of 3 blocks 99.9%. An OD of 4 blocks 99.99%. Standard machine vision applications usually require OD 3 to OD 4. In contrast, extreme laser separation requires OD 6 or higher to protect delicate sensor arrays from direct burns. Over-specifying OD drastically increases manufacturing complexity.

Edge Slope

Edge slope defines the transition sharpness from a blocking state (typically 10% transmission) to a transmitting state (80% transmission). Steeper slopes create a sharp, distinct cut-off. However, steeper slopes require highly complex, multi-layered coating stacks. These complex stacks reduce manufacturing yields and increase piece prices. You should specify steep slopes only when target wavelengths sit extremely close to noise wavelengths.

Angle of Incidence (AOI) Sensitivity

AOI sensitivity is a critical risk factor for thin-film components. When light hits an interference filter at an angle greater than zero degrees, the effective optical path length through the coating layers changes. This causes a spectral "blue-shift"—the target wavelength moves toward the shorter (blue) end of the spectrum. You must dictate strict mounting tolerances and account for the camera lens's Field of View (FOV) to prevent this shift.

Fabrication Techniques: Performance vs. Reliability Trade-offs

How manufacturers build your filter directly dictates how it survives in the field. Understanding the fundamental chemistry and physics of fabrication allows you to balance optical precision against mechanical durability.

Absorptive vs. Interference (Dichroic) Filters

These two primary fabrication methods operate on completely different physics principles.

1. Absorptive Filters: These rely on specialized doped glass. The glass matrix naturally absorbs unwanted wavelengths while transmitting others. They offer lower peak transmission but are completely insensitive to the angle of incidence. However, because they absorb light energy, they retain heat. They handle high-power lasers poorly, often cracking under intense thermal loads.
2. Interference Filters: These rely on alternating thin-film coatings with different refractive indices. They bounce unwanted light away rather than absorbing it. They deliver exceptionally high transmission rates and steep edge slopes. However, they are highly sensitive to the Angle of Incidence.

Coating Technologies

If you select interference filters, the coating application method determines longevity. Traditional multi-layer soft coatings evaporate onto the substrate. They are highly cost-effective for benign environments. Unfortunately, soft coatings remain porous. They absorb ambient moisture, which shifts their spectral performance over time.

Hard sputtered coatings offer the modern alternative. Using ion-beam or magnetron sputtering, manufacturers blast highly dense layers onto the substrate. These hard coatings exhibit superior adhesion, block moisture completely, and remain environmentally stable even in harsh chemical plants.

Physical Protection and AR Coatings

Optical filters frequently serve dual purposes. They manage light, but they also act as the sensor's outer physical cover glass. Bare glass or acrylic naturally reflects about 4% of incident light per surface. For a standard dual-surface cover, you lose 8% of your signal to useless reflection. Applying Anti-Reflective (AR) coatings minimizes this refractive index mismatch. Proper AR coatings reduce these default reflection losses to under 1%. This vital step pushes total sensor transmission past 99%.

Implementation Risks and Vendor Shortlisting Logic

Moving from a theoretical optical design to a mass-produced industrial component introduces heavy logistical risks. Smart engineering teams align their component designs with vendor capabilities early in the development cycle.

Standard vs. Custom Tooling

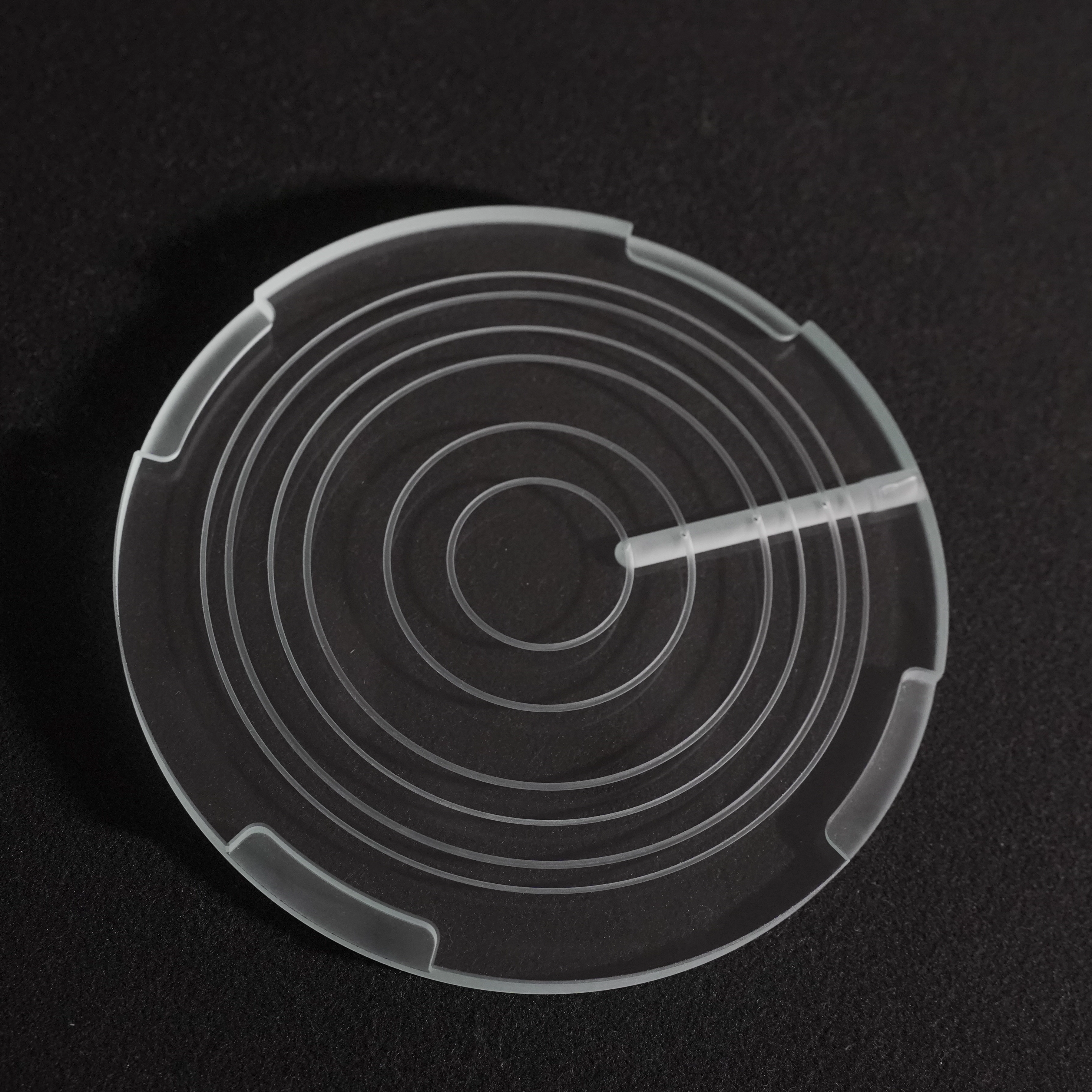

Off-the-shelf components offer massive advantages for fast prototyping. You can validate basic concepts quickly. However, volume manufacturing of complex, custom multi-zone filters requires vendor-specific hard tooling. Creating specialized masks for custom geometries extends lead times. You must perform rigorous batch consistency validation. Transitioning from a catalog filter to a custom shape often reveals unexpected yield drops.

QA and Reliability Testing Requirements

Never assume a filter will survive your factory floor based solely on a datasheet. Advise your purchasing teams to request specific environmental testing data from vendors.

• Spectrophotometer Baseline Metrics: Verify the actual CWL, FWHM, and OD match the promised curves.
• Laser Damage Thresholds: Essential for high-power lidar or laser-cleaning applications to ensure the coating does not vaporize.
• High-Temperature / High-Humidity Testing: Often performed as salt fog tests. These verify that hard coatings resist delamination and moisture intrusion under extreme stress.

Design Integration (The Black-Panel Effect)

Modern product design blends aesthetics with optics. Consider the "Black-Panel Effect" for consumer-facing devices or discreet security sensors. Engineers use visibly opaque, IR-transmitting substrates. To the naked eye, the sensor housing looks like a solid, sleek black panel. The internal electronic components remain hidden. However, to the IR detector behind the glass, the panel acts as a highly transparent window. Integrating this effect requires precise control over the substrate's visible absorption characteristics.

Conclusion

Selecting the optimal components for industrial sensing requires a strict balance between theoretical physics and mechanical realities. You must align transmission peaks, FWHM, and optical density with your specific signal requirements. Simultaneously, you must account for physical vulnerabilities like AOI shift, thermal absorption, and AR coating durability.

To ensure project success, follow these actionable next steps:

• Baseline your required optical density and acceptable angle of incidence before finalizing the mechanical sensor housing.
• Limit your specifications to what the system genuinely needs; pushing OD beyond system requirements harms your budget without improving data.
• Consult with an optics manufacturer during the early prototyping phase. This prevents locking your team into geometries that require highly expensive, custom coating tools.
• Demand comprehensive environmental test data to validate long-term thin-film adhesion.

FAQ

Q: What is the difference between an absorptive and an interference optical filter?

A: Absorptive filters use specially doped glass to absorb unwanted wavelengths, converting that light energy into heat. They are insensitive to viewing angles. Interference filters use alternating thin-film layers to reflect unwanted wavelengths away. They offer much higher light transmission and sharper cut-offs, but they are highly sensitive to the angle of incoming light.

Q: How does the Angle of Incidence (AOI) affect bandpass filters?

A: When light strikes an interference filter at an angle, it changes the distance the light travels through the thin-film layers. This alters the interference pattern. Consequently, the transmitted wavelength shifts toward the shorter, blue end of the spectrum. This phenomenon is called "blue-shift" and can push targeted signals out of the transmission band.

Q: What does Optical Density (OD) mean in sensor optics?

A: Optical Density uses a logarithmic formula to measure how much light a filter blocks. An OD of 1 blocks 90% of light. An OD of 2 blocks 99%. An OD of 3 blocks 99.9%, and an OD of 4 blocks 99.99%. Standard industrial machine vision typically relies on OD 3 or 4 to suppress background noise effectively.

Q: Why use an Anti-Reflective (AR) coating on an optical filter?

A: Bare glass or acrylic naturally reflects light due to a mismatch in the refractive index between air and the material. A standard clear cover loses about 4% of light per surface, totaling an 8% loss. AR coatings mitigate this mismatch, recovering that 8% loss and pushing overall light transmission to over 99%.
